What is Resistance Welding? Detailed Discussion about Resistance Welding

What is Resistance Welding?

Resistance welding is a welding process that uses electric resistance to generate heat and join two or more metal parts together. In this process, an electric current is passed through the metal parts to be welded, and the resistance of the metal generates heat at the welding point. This heat causes the metal to melt and fuse together, forming a strong and permanent bond.

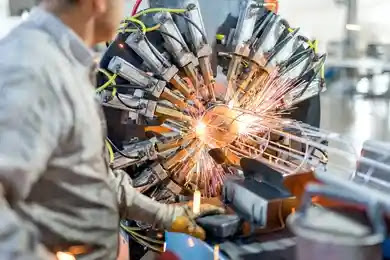

What is Resistance Welding? Detailed Discussion about  Resistance Welding

There are several types of resistance welding techniques, including spot welding, seam welding, projection welding, and flash welding. The most commonly used resistance welding technique is spot welding, where a small circular electrode is used to apply pressure and an electric current to the metal parts being welded. Seam welding is similar to spot welding but is used to create a continuous weld along a seam or joint.

Resistance welding is widely used in the automotive, aerospace, and electronics industries because of its efficiency and speed. It is a reliable and cost-effective welding technique, especially for mass production applications. Resistance welding can also be used to join dissimilar metals, including copper, aluminum, and steel.

Resistance Welding Procedure Step by Step

Here are the basic steps involved in the resistance welding process:

  1. Preparation of the metal parts: The metal parts to be welded are first cleaned and checked for any defects, such as rust or dirt. The parts are then positioned and aligned correctly for welding.
  2. Clamping the parts: The metal parts are then clamped together in the correct position. The clamping pressure is critical to ensure proper contact between the parts.
  3. Application of the electrode: An electrode is then positioned on top of the metal parts to be welded. The electrode is typically made of copper and is designed to conduct electricity and apply pressure to the parts.
  4. Application of current: An electric current is then passed through the electrode, which creates a resistance heating effect in the metal parts being welded. The heat generated by the resistance melts the metal, which then cools and solidifies to form a strong bond.
  5. Holding time: After the current is turned off, the electrode is held in place for a set period to allow the metal to cool and solidify completely. This holding time is critical to ensure a strong and reliable weld.
  6. Removal of the electrode: Once the holding time is complete, the electrode is removed, and the welded parts are inspected for any defects or imperfections.
  7. Post-weld treatment: Depending on the type of metal and application, the welded parts may undergo further treatment, such as cleaning, grinding, or coating.

These are the basic steps involved in the resistance welding process. The specific parameters and settings used for each step will depend on the type of material, thickness, and the welding technique used. Proper control of these parameters is critical to ensure high-quality welds and to prevent defects such as cracks, porosity, or incomplete fusion.

Types of Resistance Welding

There are several types of resistance welding, each with its own advantages and limitations. The most common types are:

  1. Spot welding: This is the most common type of resistance welding, where a small circular electrode is used to apply pressure and an electric current to the metal parts to be welded. Spot welding is often used in the automotive industry to join sheet metal panels.
  2. Seam welding: This process is similar to spot welding but is used to create a continuous weld along a seam or joint between two metal parts, such as in the manufacture of metal tubing or tanks.
  3. Projection welding: This process is used to weld metal parts with raised or protruding features, such as studs or nuts, by concentrating the electric current at the point of contact between the parts.
  4. Flash welding: This process involves the use of high current and pressure to create a rapid heating and cooling cycle that fuses the metal parts together. This process is often used to weld non-ferrous metals such as aluminum.
  5. Resistance butt welding: This process is used to join two metal parts of similar cross-sectional areas by applying pressure and current to the ends of the parts.
  6. High-frequency resistance welding: This process uses high-frequency current to create heat and weld metal parts together. It is often used for thin sheets or wires.
  7. Percussion welding: This process uses high-pressure impact to weld two metal parts together. It is often used for small parts or for joining dissimilar metals.

Each type of resistance welding has its own advantages and limitations, and the choice of technique will depend on the type of metal, thickness, and application. Proper control of welding parameters such as current, pressure, and timing is critical to ensure high-quality welds and to prevent defects such as cracks or incomplete fusion.

Read More: What is Tig Welding? Detailed discussion about TIG Welding

Uses of Resistance Welding

Resistance welding is a widely used welding technique in various industries, including automotive, aerospace, electronics, and manufacturing. Some of the common uses of resistance welding are:

What is Resistance Welding? Detailed Discussion about  Resistance Welding

  1. Automotive industry: Resistance welding is commonly used in the automotive industry to join sheet metal parts together. It is used to weld body panels, chassis, and engine parts.
  2. Aerospace industry: Resistance welding is used in the aerospace industry to join various metal parts together. It is used to weld structural parts of aircraft such as landing gear, wings, and fuselage.
  3. Electronics industry: Resistance welding is used in the electronics industry to join small metal parts together. It is used to weld wires, terminals, and connectors.
  4. Manufacturing industry: Resistance welding is used in various manufacturing processes to join metal parts together. It is used to weld pipes, tubes, tanks, and other metal structures.
  5. Medical industry: Resistance welding is used in the medical industry to join metal parts together. It is used to weld various medical instruments and devices.

Resistance welding is a reliable and cost-effective welding technique, especially for mass production applications. It is a clean and efficient process that requires minimal preparation and post-weld cleaning. It can also be used to join dissimilar metals, including copper, aluminum, and steel.

Read More: What is Mig Welding? Detailed discussion about Mig Welding

Advantages and Disadvantages of Resistance Welding

Advantages of Resistance Welding:

  1. High productivity: Resistance welding is a fast and efficient welding technique that can be automated and integrated into high-speed production lines, leading to high productivity.
  2. Cost-effective: Resistance welding is a relatively inexpensive welding technique that requires minimal preparation, equipment, and maintenance. It also uses less energy compared to other welding techniques.
  3. Clean process: Resistance welding does not require any filler material or flux, which makes it a clean process. It produces minimal smoke, fumes, or spatter, leading to a safer and cleaner working environment.
  4. High quality: Resistance welding produces high-quality welds that have good strength, durability, and consistency. It also has low distortion and minimal thermal distortion.
  5. Versatile: Resistance welding can be used to weld a wide range of materials, including aluminum, copper, and stainless steel.

Disadvantages of Resistance Welding:

  1. Limited thickness: Resistance welding is best suited for thin to medium thickness materials, as it is difficult to achieve proper heating and cooling for thick materials.
  2. High initial investment: While resistance welding is relatively inexpensive compared to other welding techniques, the initial investment in equipment can be high.
  3. Limited joint configuration: Resistance welding is limited to simple joint configurations such as lap, butt, and spot welds. It is not suitable for more complex joint configurations.
  4. Electrical conductivity of materials: Resistance welding requires the materials being welded to have high electrical conductivity. Materials with low electrical conductivity, such as cast iron, cannot be welded using resistance welding.
  5. Dependence on welding parameters: Resistance welding requires precise control of welding parameters such as current, voltage, and welding time. Any deviation from the optimal parameters can result in poor quality welds.

Resistance Welding Formula

Resistance welding uses electrical resistance to generate heat that melts and fuses the metal parts together. The amount of heat generated in the process can be calculated using the following formula:

Q = I^2 * R * t

Where:

Q = Heat energy (Joules)

I = Welding current (Amperes)

 R = Electrical resistance of the metal parts being welded (Ohms)

t = Welding time (Seconds)

The formula shows that the amount of heat generated in resistance welding is directly proportional to the welding current, the electrical resistance of the metal parts, and the welding time. Therefore, to achieve a high-quality weld, it is important to maintain precise control over these parameters.

Resistance welding also requires careful selection of the welding electrode materials, geometry, and cooling method. The electrode material should have high electrical and thermal conductivity, as well as good wear resistance. The electrode geometry should be matched to the joint geometry to ensure proper heat distribution and contact with the metal parts. The cooling method should be designed to prevent overheating and electrode damage, while maintaining proper electrode temperature and contact pressure.
