Inductor: Definition, Parts , Type, Working, Advantages, Application & More

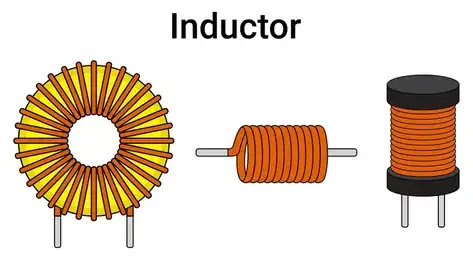

What is Inductor?

An inductor is a passive electronic component that stores energy in a magnetic field when an electric current flows through it. It is also called a coil or reactor. The inductor is made up of a coil of wire that is wound around a core made of a magnetic material such as iron.

When an electric current flows through the coil, a magnetic field is generated in the core. The strength of the magnetic field depends on the amount of current flowing through the coil and the number of turns in the coil. The magnetic field generated by the inductor opposes changes in the current flowing through it, according to Faraday's law of electromagnetic induction.

Inductors are commonly used in electronic circuits to filter and smooth out AC signals, as well as to store energy in DC power supplies. They are also used in transformers, which are devices that transfer energy from one circuit to another. The inductor is a fundamental component in many electronic applications and is an important tool for engineers and scientists.

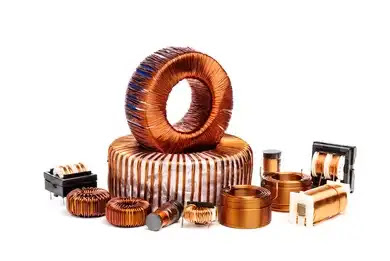

Different Types of Inductor

There are several types of inductors that are used in various electronic circuits. Here are some of the most common types of inductors:

1. Air Core Inductor: This type of inductor has a core made of air, which means it has no magnetic material. It is used in applications where high-frequency signals need to be filtered or tuned, as it has low losses and high Q-factor.
2. Iron Core Inductor: This type of inductor has a core made of magnetic material, such as iron or ferrite. It is used in applications where a high inductance value is required, such as in power supplies and transformers.

3. Ferrite-Core Inductor: A ferrite-core inductor is an inductor that uses a ferrite core to increase its inductance. Ferrite is a ceramic material that has high permeability, which means it can easily be magnetized and demagnetized. This property makes it an ideal material for inductor cores.

   The ferrite core in a ferrite-core inductor increases the magnetic flux density within the inductor, which increases its inductance. The core also helps to confine the magnetic field within the inductor, which reduces losses due to leakage. The ferrite core in a ferrite-core inductor can be made in different shapes and sizes to optimize its performance for a particular application.

   Ferrite-core inductors are commonly used in high-frequency applications due to their ability to handle high currents and high magnetic flux densities. They are often used in switch-mode power supplies, RF circuits, and inductors for noise suppression in electronic circuits.

   One advantage of ferrite-core inductors is that they are highly efficient at high frequencies, which makes them ideal for use in switch-mode power supplies where high efficiency is required. Another advantage is that they can be made very small, which makes them ideal for use in portable electronic devices. However, ferrite-core inductors can be more expensive than other types of inductors, which can be a consideration in some applications.

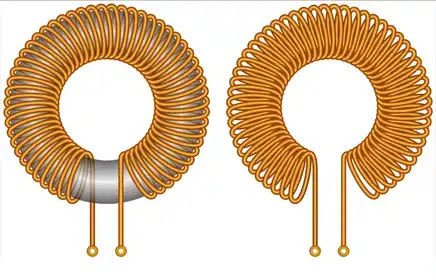

4. Toroidal Inductor: This type of inductor has a core that is in the shape of a torus or doughnut. It is commonly used in power supplies and audio circuits, as it has low losses and high inductance values.
5. Multilayer Chip Inductor: This type of inductor is made by winding several layers of metal around a ceramic or plastic core. It is commonly used in surface mount technology (SMT) applications due to its small size and low cost.
6. Coupled Inductor: This type of inductor consists of two or more separate inductors that are coupled together by magnetic fields. It is used in applications such as transformers and filters.
7. RF Choke: This type of inductor is designed to block high-frequency AC signals while allowing DC signals to pass through. It is commonly used in RF circuits to prevent interference.

These are just a few of the many types of inductors available. The choice of inductor type depends on the specific application and the performance requirements of the circuit

Parts of Inductor

An inductor is a passive electronic component that stores energy in a magnetic field when current flows through it. The main parts of an inductor include:

1. Core: The core of an inductor is typically made of a magnetic material, such as iron or ferrite, that concentrates the magnetic field and increases the inductance of the coil. The shape and material of the core can greatly affect the performance and behavior of the inductor.
2. Coil: The coil is the most visible part of an inductor and is made up of a wire wound around the core. The number of turns in the coil, the diameter of the wire, and the spacing between the turns all affect the inductance of the inductor.
3. Leads: The leads of an inductor are the wires that extend from the coil and are used to connect the inductor to other components in the circuit. The length and thickness of the leads can affect the inductance of the inductor and should be considered when designing and selecting components for a circuit.
4. Enclosure: Some inductors are housed in an enclosure, which provides protection from external influences, such as moisture or mechanical stress. The enclosure can also help to reduce electromagnetic interference and noise.

Overall, the core, coil, leads, and enclosure are the main parts of an inductor. Each part plays an important role in the performance and behavior of the inductor and should be carefully considered when designing and selecting components for a circuit.

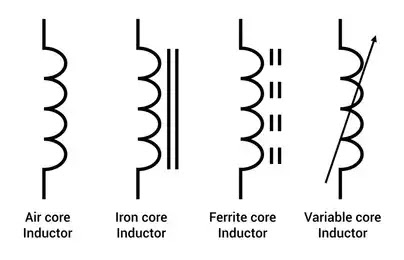

Inductor Symbol

Applications of Inductor

Inductors have a wide range of applications in electronics, including:

1. Power Supplies: Inductors are used in power supplies to smooth out the output voltage and reduce ripple. They are also used in DC-DC converters to step-up or step-down voltage.
2. Filters: Inductors are used in filters to block or pass certain frequencies. They are commonly used in high-pass, low-pass, and band-pass filters.
3. Oscillators: Inductors are used in LC (inductor-capacitor) circuits to create oscillations at a specific frequency.
4. Transformers: Inductors are used in transformers to transfer energy between circuits with different voltages. They are commonly used in power supplies to step-up or step-down voltage.
5. Sensors: Inductors can be used as sensors in applications such as metal detectors and proximity sensors.
6. Audio Circuits: Inductors are used in audio circuits as part of tone controls and filters.
7. Motor Control: Inductors are used in motor control circuits to smooth out the current and reduce noise.

These are just a few examples of the many applications of inductors in electronics. Inductors are an essential component in many circuits and are used in a wide range of electronic devices, from cell phones and computers to power plants and electric vehicles.

Working principle of Inductor

An inductor is a passive electrical component that stores energy in a magnetic field when electric current flows through it. The working principle of an inductor is based on Faraday's law of electromagnetic induction, which states that when the magnetic field through a coil of wire changes, a voltage is induced in the wire.

When an electric current flows through the coil of wire, it creates a magnetic field around the wire. The strength of the magnetic field is proportional to the amount of current flowing through the coil. As the current changes, the magnetic field changes as well, and this change induces a voltage in the coil according to Faraday's law. The induced voltage is proportional to the rate of change of the magnetic field and the number of turns in the coil.

This induced voltage has a polarity that opposes the change in current that caused it, according to Lenz's law. This means that when the current through the inductor is increasing, the induced voltage will oppose this increase and when the current is decreasing, the induced voltage will oppose this decrease. This opposition to changes in current flow is the basis for the inductor's ability to store energy in the magnetic field.

The inductor is commonly used in a variety of electronic circuits, such as filters, oscillators, transformers, and power supplies, to smooth out changes in voltage or current, filter out unwanted frequencies, and store energy. The inductor's ability to store energy in a magnetic field makes it a useful component in many electrical applications.

Difference between Inductor and Capacitor

Inductors and capacitors are both passive electronic components used in circuits to store energy. However, they store energy in different ways and have different effects on the circuit.

An inductor stores energy in a magnetic field created by the flow of current through a coil of wire. It resists changes in the current and tends to maintain a steady current flow. Inductors are typically used in circuits to smooth out changes in voltage, to filter out unwanted frequencies, and to store energy in DC power supplies.

A capacitor, on the other hand, stores energy in an electric field created between two conductive plates separated by a dielectric material. It resists changes in voltage and tends to maintain a steady voltage level. Capacitors are typically used in circuits to store energy, filter out unwanted frequencies, and block DC voltage while allowing AC voltage to pass through.

In summary, the main difference between inductors and capacitors is that inductors store energy in a magnetic field and resist changes in current flow, while capacitors store energy in an electric field and resist changes in voltage. Both components have their unique characteristics and are used in a wide range of circuits to achieve different goals.

Here's a table summarizing the main differences between inductors and capacitors:

Parameter	Inductor	Capacitor
Symbol	L	C
Function	Stores energy in a magnetic field	Stores energy in an electric field
Unit	Henry (H)	Farad (F)
Impedance	Increases with frequency	Decreases with frequency
Reactance	Increases with frequency	Decreases with frequency
Resistance to Change	Resists changes in current flow	Resists changes in voltage
Application	Filter, oscillator, transformer, sensor	Filter, oscillator, timing, energy storage

Keep in mind that these are generalizations and that there are exceptions to some of these differences depending on the specific circuit and application.

Advantages and Disadvantages of Inductor

Inductors are passive electronic components that store energy in a magnetic field when current flows through them. They are widely used in electronic circuits for a variety of applications, but they also have some advantages and disadvantages to consider.

Advantages of Inductors:

1. Smooth out voltage changes: Inductors are commonly used in electronic circuits to smooth out voltage changes and filter out unwanted frequencies, which can help to improve the performance and stability of the circuit.
2. Energy storage: Inductors can store energy in a magnetic field and release it back into the circuit when needed. This makes them useful in a variety of applications, including DC power supplies, motors, and transformers.
3. Easy to design: Inductors are relatively easy to design and manufacture, which makes them a popular choice for many electronic applications.
4. Low cost: Inductors are generally low cost compared to other electronic components, which makes them an attractive choice for many applications.

Disadvantages of Inductors:

1. Size and weight: Inductors can be relatively large and heavy, especially for applications that require high inductance values.
2. Limited frequency range: Inductors are not ideal for use at high frequencies due to their parasitic capacitance, which can lead to losses and reduced performance.
3. Magnetic interference: Inductors can generate magnetic interference that can affect nearby components in a circuit.
4. Non-ideal behavior: Inductors exhibit non-ideal behavior at high currents, which can lead to saturation and reduced performance.

Overall, the advantages of inductors make them a popular choice for many electronic applications, while the disadvantages need to be considered when selecting an appropriate component for a particular application.

Functions of an Inductor

An inductor is a passive electronic component that stores energy in a magnetic field when current flows through it. Inductors have a variety of functions in electronic circuits, including:

1. Energy storage: Inductors can store energy in a magnetic field and release it back into the circuit when needed. This makes them useful in a variety of applications, including DC power supplies, motors, and transformers.
2. Filtering: Inductors can be used in electronic circuits to filter out unwanted frequencies and smooth out voltage changes. This helps to improve the performance and stability of the circuit.
3. Signal processing: Inductors can be used in signal processing applications, such as in audio filters and equalizers, to adjust the frequency response of a circuit.
4. Noise suppression: Inductors can be used in electronic circuits to suppress unwanted noise and interference, which can help to improve the quality of the signal.
5. Power regulation: Inductors can be used in voltage regulators to help maintain a stable output voltage, even when the input voltage changes.
6. Timing: Inductors can be used in oscillator circuits to help set the frequency and timing of the circuit.

Overall, the functions of an inductor make it an important component in many electronic circuits. Its ability to store energy in a magnetic field and its filtering capabilities make it useful for a variety of applications, from power supplies to signal processing.

Inductor Formula

The inductor is a passive electronic component that stores energy in a magnetic field when current flows through it. The inductance of an inductor is determined by its physical properties, such as the number of turns, the shape of the coil, and the magnetic permeability of the core material. The inductance of an inductor can be calculated using the following formula:

L = (μ * N^2 * A) / l

where: L = inductance in henries (H)

 μ = magnetic permeability of the core material

N = number of turns

 A = cross-sectional area of the core material in square meters (m^2)

l = length of the core material in meters (m)

This formula assumes that the core material is uniform and that all of the magnetic flux is contained within the core. In reality, there is some amount of magnetic flux leakage, which can lead to losses and reduced performance.

The inductance of an inductor can also be affected by factors such as the frequency of the current, the temperature of the core material, and the presence of other nearby magnetic fields. It's important to consider these factors when designing and selecting inductors for electronic circuits.
