Turbocharger: Types, Working, Advantages, and More

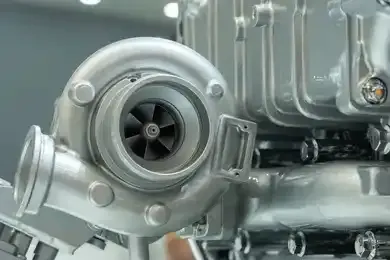

What is Turbocharger?

A turbocharger is a forced induction system that increases the power output of an engine by compressing the air that enters it. The system consists of a turbine and a compressor that are connected by a shaft. The turbine is driven by the engine's exhaust gases, which spin the compressor and compress the air that enters the engine.

When the engine is running, exhaust gases pass through the turbine, which spins the compressor at high speeds. As the compressor spins, it draws in air from the surrounding environment and compresses it before sending it into the engine's intake manifold. The compressed air is denser than the air that would normally enter the engine, allowing more fuel to be added to the air/fuel mixture, which increases power output.

Turbochargers offer several advantages over naturally aspirated engines, including increased power, improved fuel efficiency, and reduced emissions. They are commonly used in high-performance cars, trucks, and SUVs, as well as in commercial and industrial applications where increased power output is needed.

However, turbochargers also have some disadvantages, such as lag and increased complexity. Lag is a delay in the turbocharger's response time, which can cause a delay in power delivery. Additionally, turbochargers can be more complex and expensive than naturally aspirated engines, and require additional maintenance and upkeep to ensure reliable performance.

How are The Turbocharger invented?

The turbocharger was invented in the early 20th century by Swiss engineer Alfred Büchi. Büchi was working for the Sulzer Brothers engineering firm in Switzerland and was tasked with developing a way to improve the performance of diesel engines. Büchi realized that the power output of diesel engines was limited by the amount of air that could be drawn into the engine, and that compressing the air before it entered the engine could significantly increase power output.

Büchi developed the first turbocharger prototype in 1905 and received a patent for the design in 1906. The prototype consisted of a centrifugal compressor driven by a turbine, which was powered by the engine's exhaust gases. Büchi continued to refine the design and built a working turbocharged engine in 1923. The engine was installed in a truck and demonstrated significant increases in power and torque compared to a non-turbocharged engine.

The development of the turbocharger was slow in the early years due to technical challenges and limited demand. However, the technology began to gain popularity in the 1940s and 1950s as aircraft manufacturers began using turbochargers to increase the power output of their engines. The use of turbochargers then expanded to other applications, such as automotive and industrial engines, where they continue to be used today.

Today, turbochargers have become an important technology for improving engine performance, especially in high-performance cars, trucks, and other vehicles. The technology has continued to evolve, with advances in materials, design, and control systems improving their efficiency and reliability.

Types of Turbocharger

There are several types of turbochargers available, each with their own unique design and characteristics. Here are some of the most common types:

1. Single Turbocharger: This is the most common type of turbocharger, consisting of a single turbine and compressor. It is typically used in smaller engines, such as four-cylinder or six-cylinder engines.
2. Twin Turbocharger: This type of turbocharger has two smaller turbines and compressors that work in tandem to deliver increased power. Twin turbos are often used in high-performance engines.
3. Variable Geometry Turbocharger (VGT): This type of turbocharger uses adjustable vanes in the turbine to control the exhaust gas flow and boost pressure. VGTs can provide improved low-end torque and better response than fixed-geometry turbos.
4. Twin-Scroll Turbocharger: This type of turbocharger uses two separate exhaust gas inlets and scrolls to deliver more consistent boost pressure and reduced turbo lag.
5. Sequential Turbocharger: This type of turbocharger uses two turbos of different sizes, with the smaller turbo providing quick boost at low RPMs and the larger turbo taking over at higher RPMs to deliver maximum power.
6. Electric Turbocharger: This type of turbocharger uses an electric motor to spin the compressor, rather than relying on exhaust gases. Electric turbos can provide immediate boost pressure and improved throttle response.

Each type of turbocharger has its own unique advantages and disadvantages, and the choice of turbocharger will depend on the specific application and performance goals.

Working of a Turbocharger

The working of a turbocharger can be explained in the following steps:

1. Exhaust Gas Drives the Turbine: The turbocharger is located in the engine's exhaust system. When the engine is running, exhaust gases flow through the turbine housing, causing the turbine wheel to spin.
2. Compressor Draws in Air: The turbine and compressor are connected by a shaft, so when the turbine spins, it also spins the compressor wheel in the opposite housing. The compressor draws in outside air and compresses it before sending it to the engine's intake manifold.
3. Increased Air-Fuel Mixture: The compressed air from the turbocharger is denser than the air that would normally enter the engine, allowing more fuel to be added to the air-fuel mixture, which results in a more powerful combustion process.
4. Exhaust Gas Exits the System: After passing through the turbine, the exhaust gases exit the system through the exhaust pipe.

The key to the turbocharger's operation is the turbine, which is driven by the engine's exhaust gases. As the engine's RPM increases, the exhaust gases flow faster through the turbine, causing it to spin faster and compress more air. This results in increased power output from the engine.

One of the challenges with turbochargers is turbo lag, which is the delay between pressing the accelerator pedal and the turbocharger producing boost pressure. Turbo lag occurs because the turbine needs to reach a certain speed before it can produce significant boost pressure. Advances in turbocharger design and technology, such as variable geometry turbochargers, have helped to reduce turbo lag and improve throttle response.

Applications of Turbocharger

Turbochargers are widely used in various applications where increased engine power and efficiency are required. Some of the common applications of turbochargers are:

1. Automotive Industry: Turbochargers are commonly used in cars, trucks, and other vehicles to increase engine power and torque without significantly increasing engine size or weight. Turbocharged engines are particularly popular in sports cars and high-performance vehicles, where maximum power output is desired.
2. Marine Industry: Turbochargers are used in large marine diesel engines to improve their power output and efficiency. Turbocharging can also reduce exhaust emissions and improve fuel efficiency, making it a popular choice for marine engines.
3. Industrial Applications: Turbochargers are used in industrial engines, such as power generators and heavy equipment, to increase power output and efficiency. They are also used in stationary engines in industries such as mining, oil and gas, and construction.
4. Aviation Industry: Turbochargers are used in aircraft engines to increase power and performance at high altitudes where the air is less dense. Turbocharged engines are particularly common in military aircraft and some commercial airliners.
5. Agricultural Equipment: Turbochargers are used in large agricultural equipment, such as tractors and combines, to increase power and efficiency. Turbocharged engines are particularly useful in farming applications where high torque is required to pull heavy loads.

Overall, turbochargers are a versatile technology that can be applied to a wide range of engines and industries to improve their performance and efficiency.

Advantages and Disadvantages of Turbocharger

Advantages of Turbochargers:

1. Increased Engine Power: Turbochargers can significantly increase the power output of an engine without requiring an increase in engine size or weight. This can improve acceleration and top speed of the vehicle or equipment.
2. Improved Fuel Efficiency: By increasing the amount of air entering the engine, a turbocharger can improve the combustion process and reduce fuel consumption, resulting in improved fuel efficiency.
3. Reduced Emissions: Turbochargers can help to reduce exhaust emissions by improving the combustion process and reducing the amount of unburned fuel that exits the engine.
4. Compact Size: Turbochargers are typically smaller and lighter than other engine boosting technologies, making them an ideal choice for applications where space is limited.
5. Better Performance at High Altitudes: Turbochargers can help maintain engine power and performance at high altitudes where the air is less dense, which is particularly useful in aviation and industrial applications.

Disadvantages of Turbochargers:

1. Cost: Turbochargers are more expensive than naturally aspirated engines or other engine boosting technologies, which can make them less attractive for some applications.
2. Complexity: Turbochargers are more complex than other engine boosting technologies, and require additional components such as intercoolers and oil cooling systems.
3. Turbo Lag: Turbochargers can suffer from turbo lag, which is the delay between pressing the accelerator pedal and the turbocharger producing boost pressure. This can result in a lack of responsiveness and reduced performance at lower engine speeds.
4. Higher Maintenance Requirements: Turbochargers require regular maintenance and cleaning to prevent damage from contaminants and excessive heat.
5. Increased Exhaust Temperature: Turbochargers can increase the temperature of the exhaust gases, which can lead to increased wear and tear on engine components and exhaust system.

Turbocharger vs Supercharger

Turbochargers and superchargers are both engine boosting technologies that increase the amount of air entering the engine, which improves power output and performance. However, there are some key differences between the two:

1. Method of Operation: Turbochargers use the energy from exhaust gases to spin a turbine, which in turn drives a compressor to compress the intake air. Superchargers, on the other hand, are driven by a belt connected to the engine's crankshaft and compress the intake air directly.
2. Efficiency: Turbochargers are generally more efficient than superchargers because they use waste energy from the exhaust to spin the turbine, which helps to recover some of the energy that would otherwise be lost. Superchargers, on the other hand, require energy from the engine's crankshaft to drive the compressor, which can increase fuel consumption and reduce efficiency.
3. Power Delivery: Turbochargers tend to produce more power at higher engine speeds because they rely on exhaust gas energy, which is only available at higher RPMs. Superchargers, on the other hand, produce more power at lower RPMs because they are driven directly by the engine's crankshaft.
4. Response: Turbochargers can suffer from turbo lag, which is the delay between pressing the accelerator pedal and the turbocharger producing boost pressure. Superchargers, on the other hand, provide immediate boost pressure, resulting in a more responsive throttle.
5. Cost: Turbochargers are generally more expensive than superchargers because they are more complex and require additional components such as intercoolers and oil cooling systems.

Ultimately, the choice between a turbocharger and a supercharger depends on the specific application and the desired performance characteristics. Turbochargers are generally more efficient and produce more power at high RPMs, while superchargers provide immediate boost pressure and more power at lower RPMs.

Turbocharger in Diesel Engine

Turbochargers are commonly used in diesel engines to improve performance and efficiency. Diesel engines typically have lower RPM ranges than gasoline engines, which can limit their power output. By using a turbocharger, a diesel engine can generate more power without increasing the engine size or weight.

The turbocharger in a diesel engine works by compressing the intake air before it enters the engine's combustion chamber. The compressed air contains more oxygen molecules, which allows for a more efficient combustion process and generates more power. The turbocharger is driven by exhaust gases, which spin a turbine that drives a compressor to compress the intake air.

The use of a turbocharger in a diesel engine can provide several benefits, including:

1. Improved Power Output: By compressing the intake air, a turbocharger can increase the amount of air entering the engine, which leads to more efficient combustion and generates more power.
2. Improved Fuel Efficiency: A turbocharger can improve the efficiency of the combustion process, which can reduce fuel consumption and improve fuel economy.
3. Reduced Emissions: A turbocharger can improve the combustion process, which can lead to reduced emissions of pollutants such as carbon monoxide, nitrogen oxides, and particulate matter.
4. Better Performance at High Altitudes: A turbocharged diesel engine can maintain its power output at high altitudes where the air is less dense, which is particularly useful in aviation and industrial applications.

Overall, the use of a turbocharger in a diesel engine can provide significant benefits in terms of performance, efficiency, and emissions.
